Engineers at ETH Zurich’s Robotic Systems Lab have made significant strides in robotics by developing ANYmal-D, a four-legged robot capable of playing badminton with human partners. This innovation merges robotics, artificial intelligence, and sports, showcasing how advanced algorithms and designs provide new avenues for human-robot interaction in dynamic environments. As this technology progresses, it opens doors for collaborative activities in various sectors beyond the realm of sports.
| Article Subheadings |
|---|
| 1) The Mechanics of Playing Badminton with a Robot |
| 2) Technology Behind ANYmal-D’s Performance |
| 3) Unified Control Policies for Coordination |
| 4) Challenges in Robotic Movement |
| 5) Real-World Application and Performance Insights |
The Mechanics of Playing Badminton with a Robot

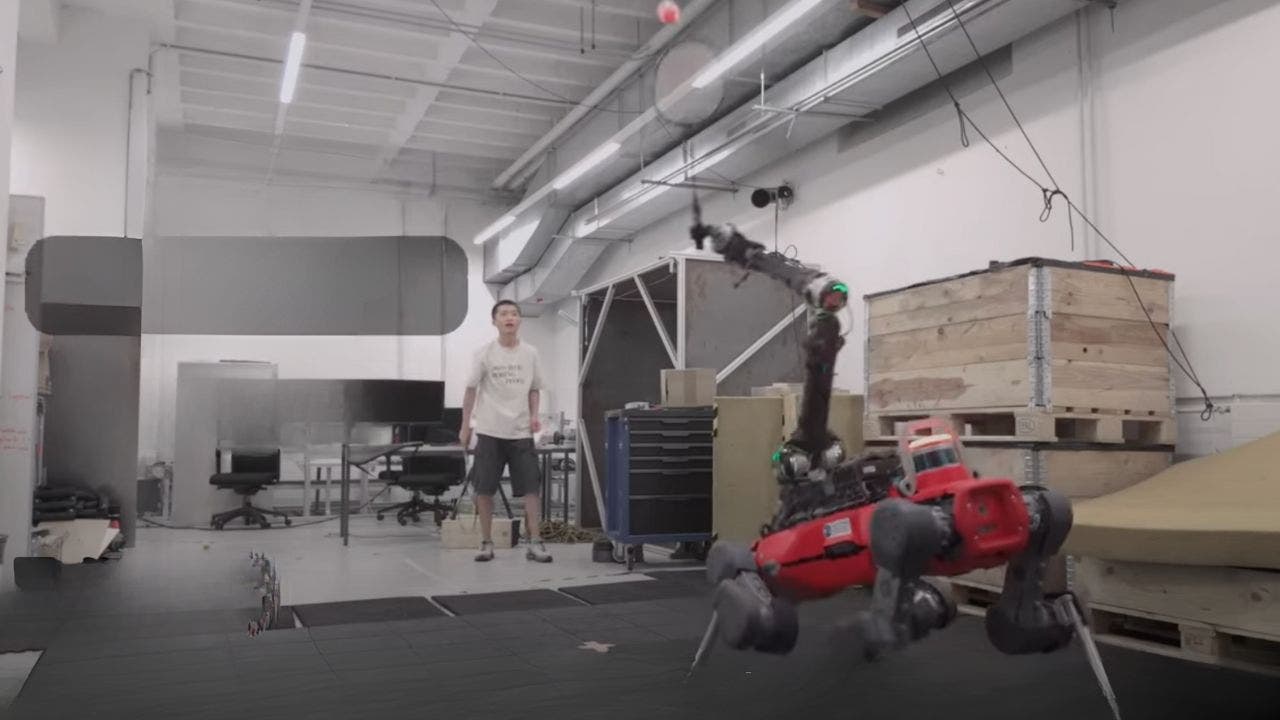

Badminton is a sport that demands agility, speed, and precision. To equip ANYmal-D with the ability to play, engineers initiated a comprehensive design process that resulted in the creation of a robot that features four legs for outstanding stability and agility. The heart of ANYmal-D’s badminton capabilities lies in its dynamic arm, which is engineered to swing a racket effectively. Additionally, a stereo camera is integrated into its design, allowing it to track the shuttlecock’s movements in real-time. The robot employs a reinforcement learning-based controller that enables it to predict the shuttlecock’s path and react accordingly. This sophisticated interaction allows ANYmal-D to maintain rallies with human players, achieving an impressive performance level with rallies extending to ten shots.
Technology Behind ANYmal-D’s Performance
The stereo camera serves as the robot’s eyes, providing real-time feedback during play. This camera utilizes a “perception noise model” to compare its observations to data gathered during the robot’s training phase, allowing it to keep track of the shuttlecock’s erratic movements. By adjusting its posture and focusing its body, ANYmal-D mimics the natural movements of human players looking to get into the perfect position for a challenging shot. This capability not only demonstrates the efficiency of its vision systems but also emphasizes the importance of machine learning in robotics.
Unified Control Policies for Coordination
One of the primary challenges in robotic operations is coordinating the movement of various parts—especially when legs and arms must work in harmony to respond to fast-paced sporting scenarios. The team at ETH Zurich successfully developed a unified control policy through reinforcement learning, which allows ANYmal-D to function as a cohesive unit. This approach involved extensive training in simulated environments to help the robot master various shots and scenarios before attempting to engage on an actual court. The combination of locomotion with fine motor skills enables ANYmal-D to respond dynamically, enhancing its overall performance.
Challenges in Robotic Movement
Combining control over the legs and arm into a single system poses significant challenges. Most existing robots execute these functions separately, resulting in limited agility and sometimes poor responses to dynamic gameplay. To enhance its functionality, ANYmal-D’s development included innovation that facilitates real-time adjustments. The robot can change its posture and gait based on the trajectory of the shuttlecock, allowing it to mirror the natural movements of human players fluidly. This ability optimizes the robot’s play, making it a competitive partner on the badminton court.
Real-World Application and Performance Insights
Transitioning from a laboratory environment to the practical badminton court involved addressing numerous real-world challenges such as power limitations and communication delays. In testing scenarios, ANYmal-D managed to effectively match its human counterparts, showcasing impressive adaptability. As the robot processed the shuttlecock’s trajectory, it demonstrated a capability to maintain rallies against varying shot speeds and placements, all while adapting its gameplay. Insights gleaned from these tests highlight the future potential of robotics within not only sports but various collaborative environments.
| No. | Key Points |
|---|---|
| 1 | ANYmal-D is a quadrupedal robot designed to play badminton with humans. |
| 2 | The robot uses advanced technologies like stereo cameras and reinforcement learning for gameplay. |
| 3 | A unified control policy enables coordinated movements of its legs and arms. |
| 4 | Robotics faces challenges in fluid movement and agility to replicate human gameplay. |
| 5 | ANYmal-D’s performance showcases its ability to adapt and respond effectively during real-world matches. |
Summary
The development of ANYmal-D represents a significant milestone in the field of robotics. By successfully integrating artificial intelligence with physical agility, this four-legged robot not only showcases remarkable sporting capabilities but also sets the stage for further advancements in human-robot collaboration. As these technologies evolve, it is conceivable that robots will play a larger role in various collaborative settings, enhancing both recreational and professional activities.
Frequently Asked Questions
Question: How does ANYmal-D track the shuttlecock?
ANYmal-D employs a stereo camera that constantly monitors the shuttlecock during play, using a perception noise model to anticipate its trajectory.
Question: What are the advantages of reinforcement learning in robotics?
Reinforcement learning allows robots to learn from their environment and experiences, improving their performance over time through trial and error.
Question: What are the potential applications for technology like ANYmal-D beyond sports?
Technology akin to ANYmal-D may find applications in various fields, including healthcare, education, and even service industries where collaboration with humans could be beneficial.
